Pepwave MAX HD2 Dome
Dual Cellular Router for Mobile Deployments

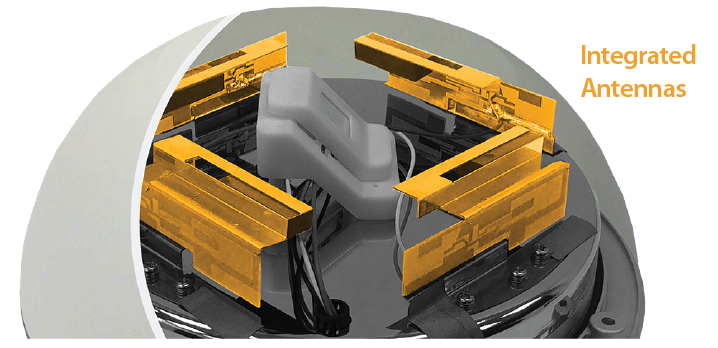

Minimum Cable Loss, Best Cellular Signal Quality

Most outdoor deployments require a centrally placed router attached to strategically placed antennas. With the HD2 Dome, the antennas are placed in the same integrated enclosure as the cellular radios. This arrangement minimizes cable loss, giving you the best signal possible.

Choose Between 8 Additional SIM With the SIM Injector. Anywhere, Anytime.

With the addition of the SIM Injector, the HD2 Dome can support up to 12 SIM at your fingertips. Simply connect an Ethernet cable between the SIM Injector and the HD2 Dome. The SIM Injector is capable of PoE output, so you don't need to add another PoE switch to your deployment.

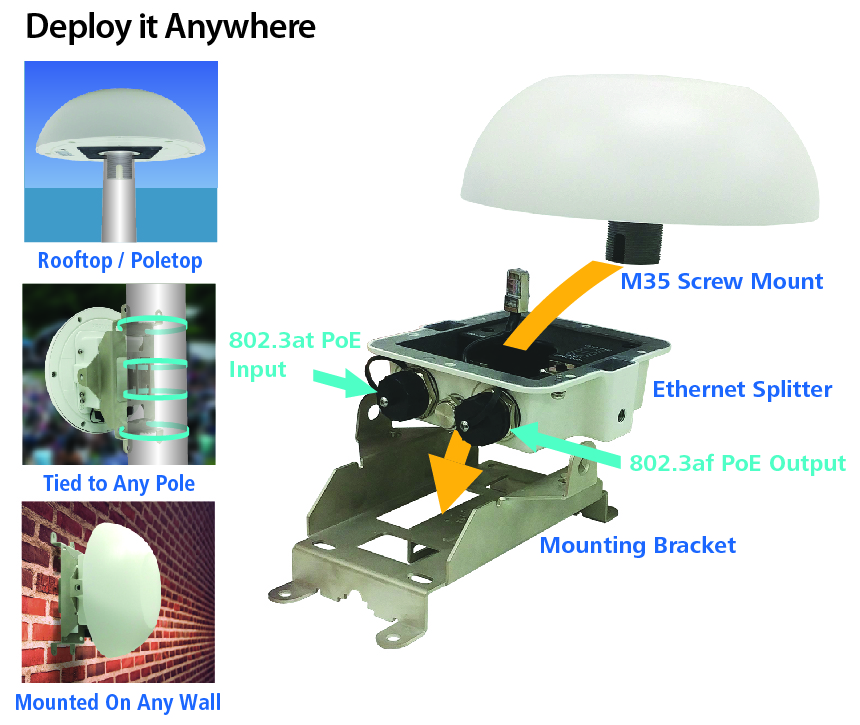

Multiple Mounting Options

The HD2 Dome offers significant deployment flexibility due to its modular construction. By itself, it has an M35 thread, making it easy to mount on top of any pole or on the rooftop of any vehicle.

The HD2 Dome comes with an Ethernet splitter that enables an additional GE LAN output. With the splitter installed, the HD2 Dome can then be used with the included mounting bracket to fix onto any wall, or to securely tie onto any pole.

The HD2 Dome, Ethernet splitter, and the mounting bracket are all included, so you can deploy this device just about anywhere.

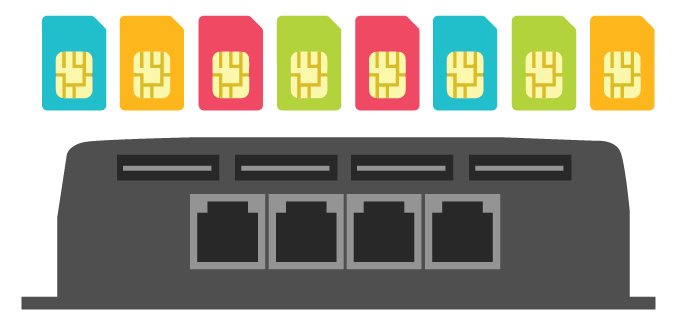

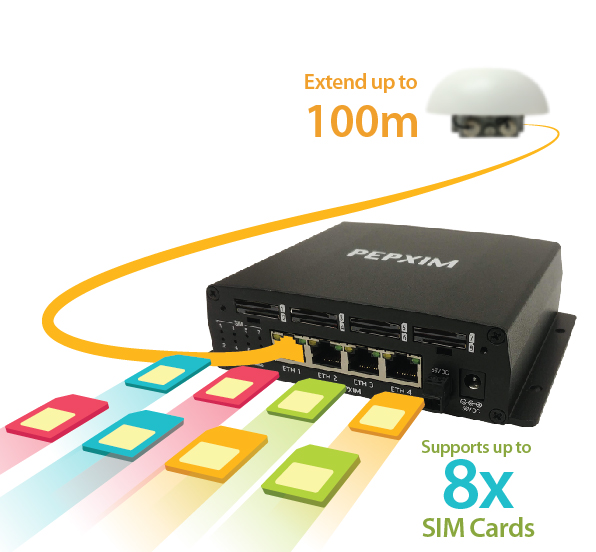

SIM Injector - More SIM, More Range

Using the SIM injector, you can add an additional eight SIM cards to your deployment. What's more, these SIM cards can be located separately from the router.

This means you could mount the HD2 Dome outdoors in a high up place, while comfortably managing your SIM cards from an indoor location or from ground level. In addition, the SIM Injector also works as a PoE switch, powering up the HD2 Dome directly.

Together, the HD2 Dome and SIM Injector can make deployments significantly easier to set up and manage.
