Overview:
HD2/ HD4 MBX
Multi-Cellular Gigabit LTE Mobile Powerhouse
The HD2/ HD4 MBX is capable of combining the bandwidth of 2 or 4 cellular links into an unbreakable, high-speed SD-WAN connection. The HD4 MBX supports up to 8 SIM cards, with room for another 8 with the optional SIM Injector. With up to 16 cellular providers to connect to, spotty coverage will simply not be a problem.
Ready for Any Environment
Fanless Design
Thrives in high-particle environments that would break other fan-based routers.
8×802.3at PoE Outputs
Power your IP phones, cameras, and access points.

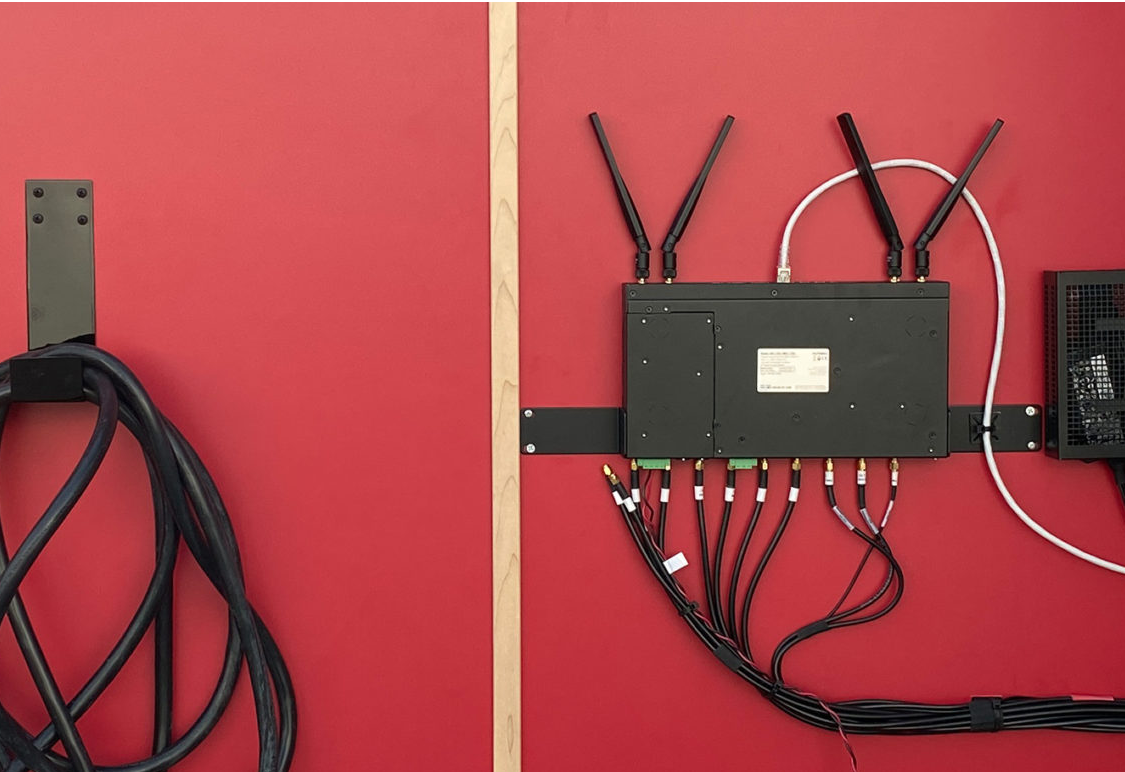

Robust Metal Enclosure
Same dimensions as the previous HD4, so it can fit seamlessly into any of your previous deployments.
Ideal for On-The-Go Deployments
Ignition Sensing gives it the ability to turn on and off depending on whether the vehicle has started. Upon vehicle shutdown, the MBX can also shut down after a user-defined interval, saving the battery from excessive drain.
The HD4 MBX also supports the optional SIM Injector, which adds another 8 cellular providers to connect with. This mitigates weak spots in cellular coverage, ensuring consistent connectivity . If your deployment crosses national boundaries, you can also use the SIM Injector to load multiple SIM cards, preventing roaming charges.
FirstNet Ready & ESN Certified
FirstNet (band 14) provides first responders with a specialized LTE network with more priority and network capacity. The HD4 MBX supports band 14, providing additional coverage as the situation demands.
Device has been also certified by UK’s Emergency Services Network (ESN).
Future Proof Design. Ready for 5G
Right out of the box, the HD4 MBX supports Gigabit LTE. For future technologies, the MBX features a swappable cellular module, so when you need to upgrade to 5G, you can simply swap your old one with a new one. The MBX is also capable of 2.5Gbps of throughput, giving you plenty of bandwidth for Gigabit Ethernet, 5G, or any future mobile technologies.

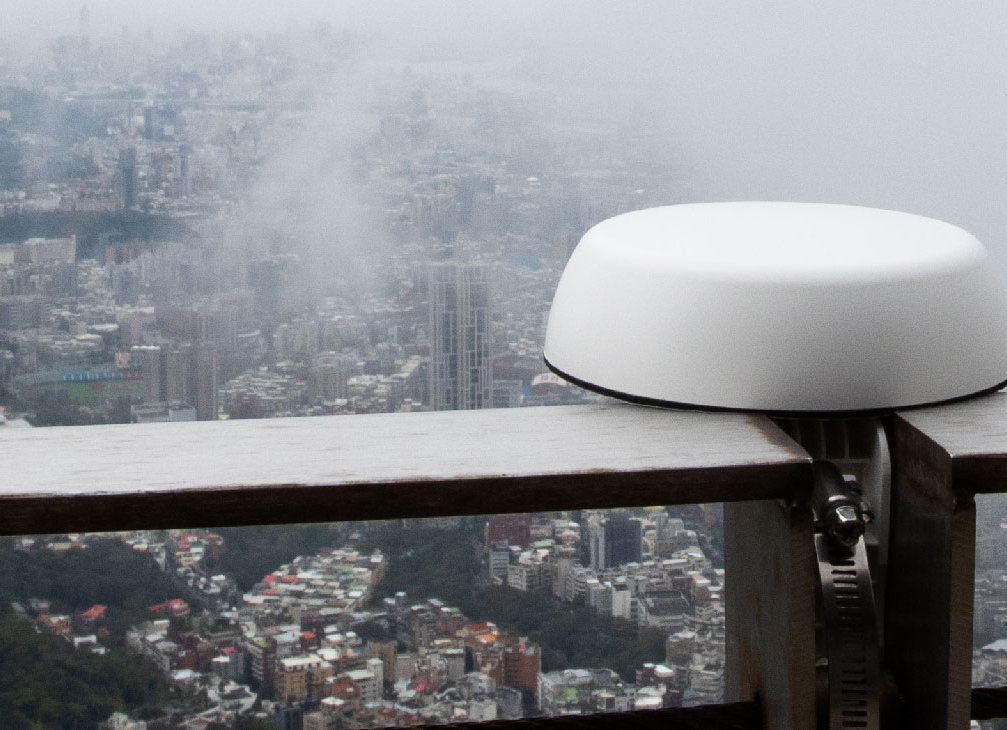

Pair with the 5G Ready Outdoor Antenna
The 5G ready Outdoor Antenna is suited to a wide range of outdoor public safety, mobile healthcare and even transportation deployments. It has support for extensive 5G global cellular frequencies including Band 71, ensuring enhanced reliability and coverage for any business-critical application.
Speed & Reliability. Brought by SpeedFusion™
SpeedFusion allows users to combine any number of connections together to form a point-to-point link to achieve what others cannot:
Combine the bandwidth of several mobile connections to form an ultra-fast data link. Sustain bandwidth-hungry and latency sensitive tasks without the need for fixed lines.
Hot Failover maintains secure tunnels over all available WAN links to keep the network up and running when a connection drops out. If a WAN link fails, SpeedFusion instantly routes traffic to a working tunnel for uninterrupted VoIP sessions.
SpeedFusion is carrier agnostic and our products are certified with multiple carriers. By combining the coverage network of several mobile carriers, chances of running into a network blindspot or congestion is minimized.
With the help of WAN smoothing network traffic will be assigned to WAN connection with the lowest latency. Use multiple WAN connections to create a single, jitter-free data stream.
Specifications:
| Peplink MBX Quad 5G | |
|---|---|
| WAN Interface |
3x 10/100/1000M Ethernet 1
2x Embedded Cellular Modems with Redundant SIM Slots 2x USB Interface |
| LAN Interface | 9x 10/100/1000M Ethernet |
| Wi-Fi Interface |
Simultaneous Dual-Band (2.4GHz / 5GHz)
Wi-Fi 5 2x2 MIMO Wi-Fi WAN and/or AP |
| SpeedFusion Features | Hot Failover, Smoothing, Bandwidth Bonding |
| Features | Ignition Sensing |
| Router Throughput | 2.5 Gbps |
| SpeedFusion Throughput (No Encryption) | 600 Mbps |
| SpeedFusion Throughput (256-bit AES) | 500 Mbps |
| Recommended Users | 50-500 |
| Cellular Data Rate 3 (Downlink / Uplink) |
5G: 3.4 Gbps / 900 Mbps
CAT-20: 1.6 Gbps / 200 Mbps |
| Antenna Connectors |
8x SMA Cellular Antenna Connectors
4x RP-SMA Wi-Fi Antenna Connectors 4 1x SMA GPS Antenna Connector |
| Power Input |
Power Port: 12V – 56V DC
AC Adapter: AC Input 100V–240V / DC Output 12V Terminal Block: 12V – 56V DC |
| Power Output | Up to Eight 802.3at PoE Outputs |
| Power Consumption | 55W (max.) |
| Dimensions | 1.7 x 11.5 x 7.0 inches / 43 x 292 x 177 mm |
| Weight | 7.28 pounds / 3.3 kg |
| Operating Temperature | -40° – 149°F / -40° – 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications |
FCC, CE, RoHS
E-Mark EN61373 Shock and Vibration Resistance EN50155 Railway Applications - Electronic Equipment used on Rolling Stock EN61000 Electromagnetic Compatibility |
| Package Content |
1x MAX HD2 MBX 5G
8x Cellular Antennas (ACW-813) 4x Wi-Fi Dual Band Antenna (ACW-341) 1x GPS Active Antenna (ACW-232) 1x Power Supply (ACW-630) 1x 3pin Terminal Block Connector (Ignition sense) 1x 4pin Terminal Block Connector (Power supply) 1x Grounding Cable & Rubber Foot Pad Set 1 Pair of Mounting Brackets (ACW-513) |
| SIM Options |
Mini-SIM (2FF)
Peplink eSIM BYO eSIM (2 profiles) 6 Remote SIM from SIM Injector FusionSIM |
| Warranty | 1-Year Limited Warranty |
Documentation:
Download the Peplink MBX Quad 5G Datasheet (.PDF)
