Peplink MBX Mini
Small is the new mighty.
Our Price: Request a Quote
Our Price: Request a Quote
More pricing below, click here!
Please Note: All Prices are Inclusive of GST
Overview:
Small is the new mighty.

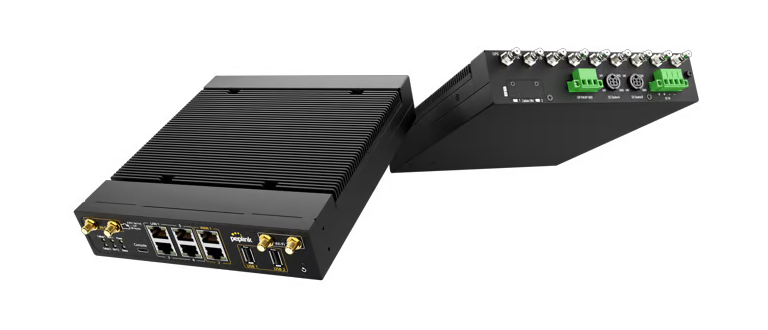

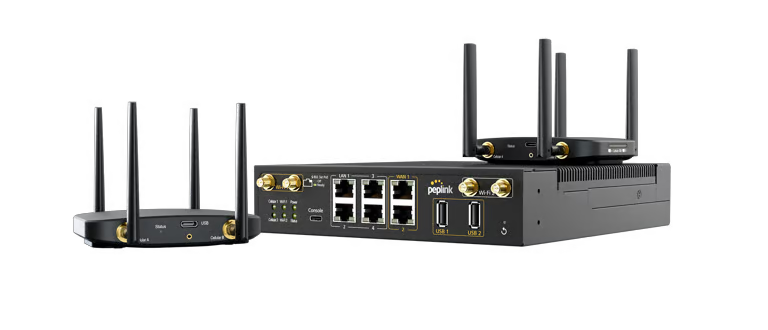

Bring your deployments to life with the versatility of the MBX Mini. It’s just as brilliant as any other MBX device we have to offer. So connect your devices to the PoE enabled LAN ports to provide network simplicity as well as IEEE 802.1X port authentication. This MBX Mini has the power to achieve it all.
Keep your connection flowing in whatever deployment that you’re immersed in and deliver more power and redundancy with THREE power input options: AC, DC, and USB-C.
One. Two. Three. Four.
We know fast connections are critical to achieving great things. Its dual-band Wi-Fi and 5G capabilities ensure you experience the fastest available network. If the dual embedded cellular WANs are not enough, the MBX Mini can be expanded to FOUR cellular WANs by simply connecting it to our MAX Adapters via the dual USB ports.
Making hard to manage feel like hardly managing.

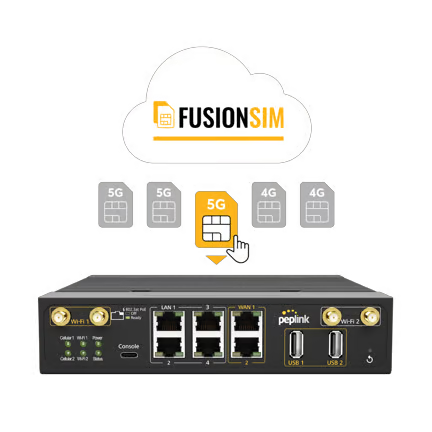

With this FusionSIM-ready router, you can say goodbye to switching and managing multiple SIMs via the router. FusionSIM offers remote provisioning of SIM profiles from anywhere in the world. Managing made easy, ready when you are!
Specifications:
| Peplink MBX Mini | |
|---|---|
| WAN Interface | 1 |
| WAN Interface |
2x Embedded Cellular Modems with
Redundant SIM Slots 2x GE 2x USB 2.0 Interface |
| LAN Interface | 4x GE |
| Wi-Fi Interface |
802.11ac/a/b/g/n, 1166 Mbps 2x2MIMO
Wi-Fi WAN and/or AP Simultaneous Dual-Band |
| Router Throughput | 2.5 Gbps |
|
SpeedFusion VPN Throughput
- No Encryption - 256-bit AES |
600 Mbps 500 Mbps |
| 5G Cellular Data Rate (Downlink/Uplink) |
5G: 3.4 Gbps / 900 Mbps
LTE CAT-20: 1.6 Gbps / 200 Mbps |
| SpeedFusion features |
Hot Failover, Smoothing,
Bandwidth Bonding, Bandwidth Overflow |
| Number of SpeedFusion VPN Peers | 3/20 |
| Recommended Users | 50-500 |
| Antenna Connectors |
8x QMA Cellular Antenna Connectors
1x QMA GPS Antenna Connector 4x RP-SMA Wi-Fi Antenna Connectors |
| Power Input |
AC Adapter: AC Input 100V-240V / DC
Output 12V DC Jack / Terminal Block: 12-56 V |
| Power Output | Up to 6x 802.3at PoE2 |
| Power Consumption | 45 W (max.) |
| Dimension |
7.32 x 8.05 x 1.61 inches
186 x 204.5 x 41 mm |
| Weight | 4.19 pounds / 1.9 kg |
| Operating Temperature | -40°– 149°F / -40°– 65°C |
| Humidity | 15% – 95% (non-condensing) |
| Certifications |
FCC, CE, RoHS, E-Mark, PTCRB
Shock and Vibration Resistance: EN 61373:1999 IEC 61373:1999 Railway Applications: EN 50155 Electromagnetic Compatibility: EN 61000 |
| Warranty | 1-Year Limited Warranty |
Documentation:
Download the Peplink MBX Mini Datasheet (.PDF)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
